WFW-72W-12-C Thermoelectric Cooler Assembly-- Air to Water

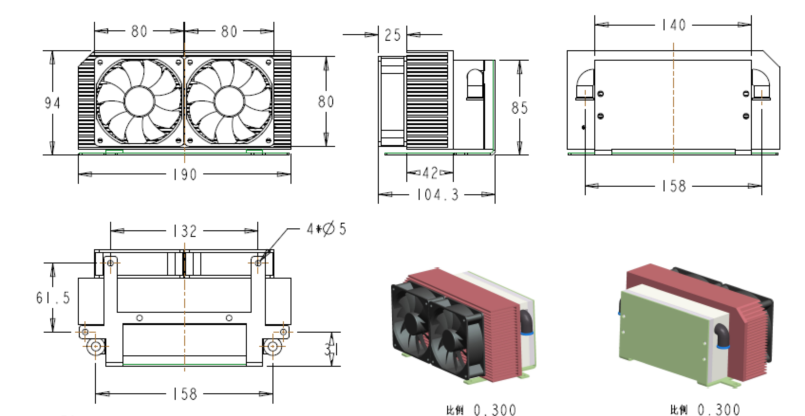

SPECIFICATION

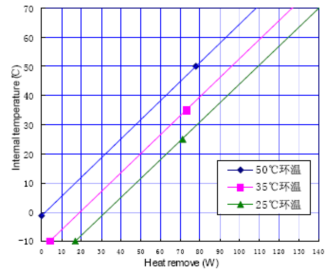

PERFORMANCE CURVE

Note:

The performance curve give the example that when the intermal temperature is 50℃ and the environment temperature is 50℃, the cooler can transfer the 72 W heat from inner side to the out side.

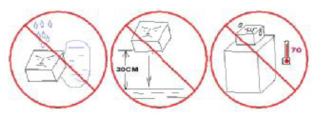

NOTES WITH USE

Ø Please use the 12 V DC power with the ripple less than 10%.

Ø The cystal of Te2Bi3 is fragile. Intense crash is forbidden even the height is 10-20cm.

Ø No water resistance.Please use in the without water.

Ø When mounting, please keep 10 cm distance with other substance.

Ø please do not use it, when the temperature of the assembly or environment is higher than 70℃

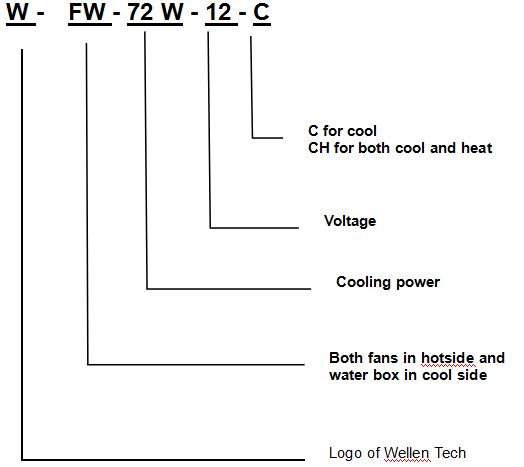

NAME METHOD
