SPECIFICATION
| Part No. | WFW-400W-24-C |
| Max Cooling power | 400W @ △T = 0℃ |
| Peltier cell | 24 V, 24A |
| Fans | 172*51mm,2pieces,24V,0.5A |
| Water box | 280*260*18mm,1 piecs |
| Heatsink | 300*150*50mm,2piecs |
| Operating Temperature | -10~70℃ |
| Weight | 14.1kg |

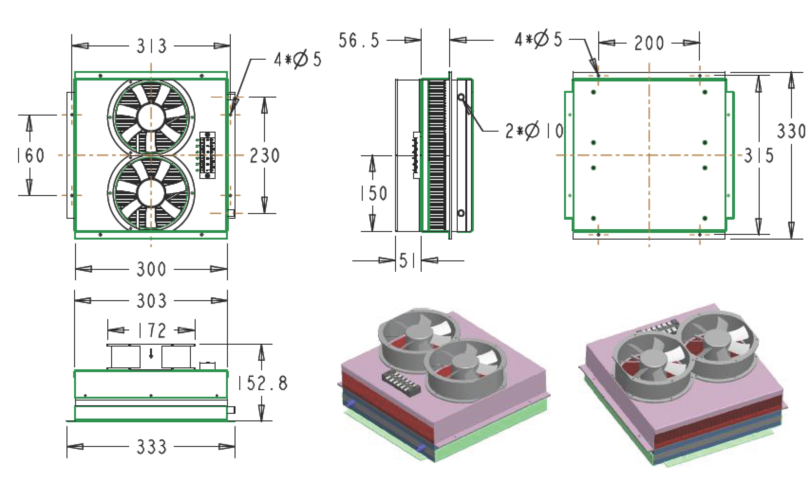

DIMENSION
PERFORMANCE CURVE
Note:
The performance curve give the example that when the intermal temperature is 50℃ and the environment temperature is 50℃, the cooler can transfer the 400W heat from inner side to the out side.
NOTES WITH USE
Ø Please use the 24 V DC power with the ripple less than 10%.
Ø The cystal of Te2Bi3 is fragile. Intense crash is forbidden even the height is 10-20cm.
Ø No water resistance.Please use in the without water.
Ø When mounting, please keep 10 cm distance with other substance.
Ø please do not use it, when the temperature of the assembly or environment is higher than 70℃

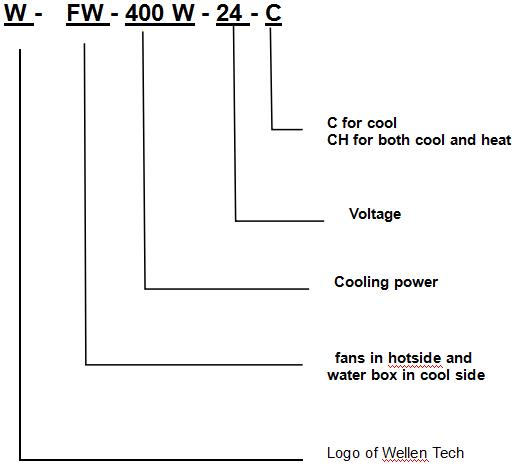

NAME METHOD
