WFP-400W-24-C Thermoelectric Cooler Assembly-- Air to Plate

SPECIFCIATION

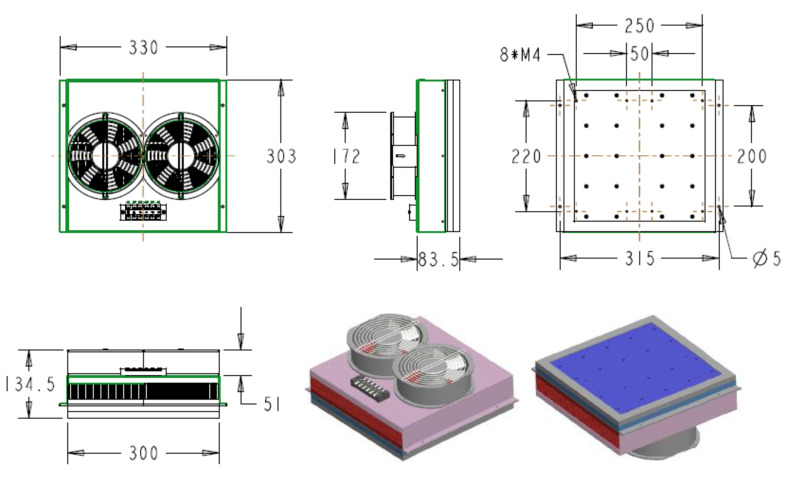

DIMENSION

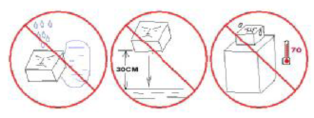

NOTES WITH USE

Ø Please use the 24 V DC power with the ripple less than 10%.

Ø The cystal of Te2Bi3 is fragile. Intense crash is forbidden even the height is 10-20cm.

Ø No water resistance.Please use in the without water.

Ø When mounting, please keep 10 cm distance with other substance.

Ø please do not use it, when the temperature of the assembly or environment is higher than 70℃

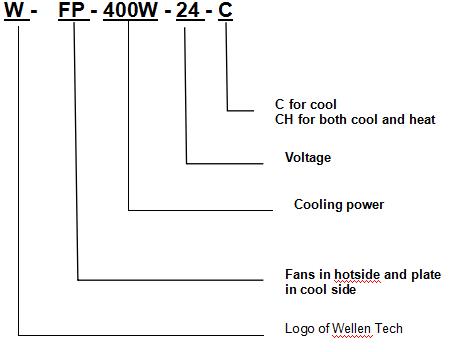

NAME METHOD

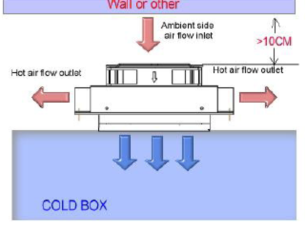

ABOUT MOUNTING
